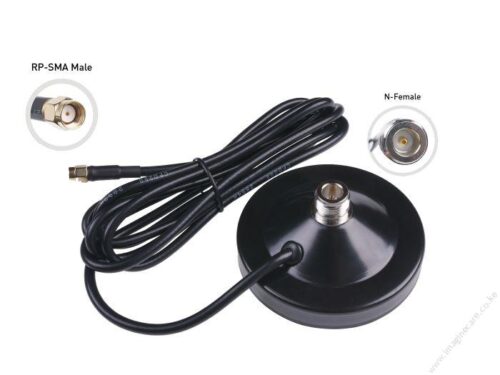

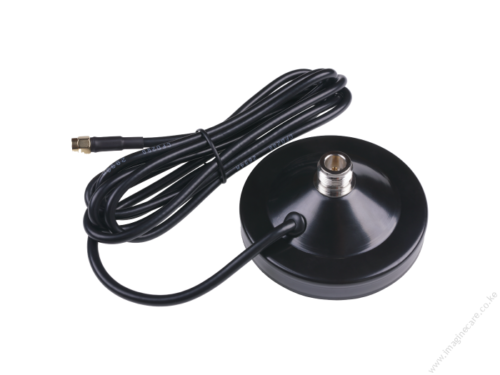

Antenna Magnetic Base; N Female to RP-SMA male – CFD200-Black-2m

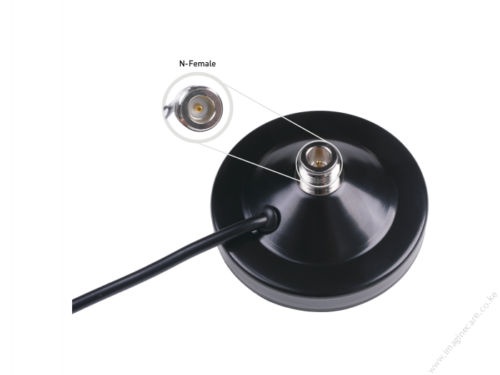

Description This antenna magnetic base is a simple solution for mounting your antenna to flat metal surfaces. It comes with an N-type female to RP-SMA male connector on a 2-meter antenna cable.     Features Magnetic base with 2m cable to extend the connection between an Antenna(N-type connector) and a Gateway(RP-SMA Female) Gold plated brass surface connector Length: 2m Waterproof CFD200 Cable (same functionality and quality with LMR200) Can be used with SenseCAP gateways series including SenseCAP M1 Frequency: 0~6GHz V.S.W.R.: ≤ 2.0 Maximum Input Power: ≥ 2 watts Impedance: 50 ohms Connector A: N-Type Female Connector Connector B: RP-SMA Male Connector Operation Temperature: -40°C ~ 65°C Storage Temperature: -40°C ~ 80°C   Description When setting up a LoRa Network the positioning of the Gateway and the Antenna may strongly influence the coverage. When you use a fiberglass antenna to further improve the coverage, this antenna magnetic base with a 2m cable could enable you to extend the distance between the device and the antenna therefore you could have more positioning flexibilities. The base is magnetic, so you could attach it to a magnetic surface. It is also waterproof and can withstand harsh outdoor environments. Applications This antenna magnetic base is suitable for: SenseCAP gateways including SenseCAP M1; LoRa-E5 Dev Kit and LoRa-E5 mini; RAK Helium Hotspot Nebra HNT Indoor Hotspot Cotx-X 3 Helium OG Hotspot (RP-SMA version) Other devices which have RP-SMA female antenna connectors and connect to N-type connector antennas;   Specification Electrical Characteristics Frequency DC0~6G V.S.W.R. <= 2.0 Max Input Power >= 2 W Polarization Linear Impedance 50 Ohm Material & Mechanical Characteristics Material of Radiator CU Material of Plastic Brass Cable Type CFD200 Connector Type N-Female to RP-SMA Male Environmental Operation Temperature – 40 ̊C~ 85 ̊C Storage Temperature – 40 ̊C~ 85 ̊C Antenna Color Storage life <2Year Technical Details 1: Base 2:  N Female Connector 3: CFD200 with a length of 2m 4: PVC 5:  RP-SMA male Connector ECCN/HTS HSCODE 8517707090 USHSCODE 8517180050 UPC Related
